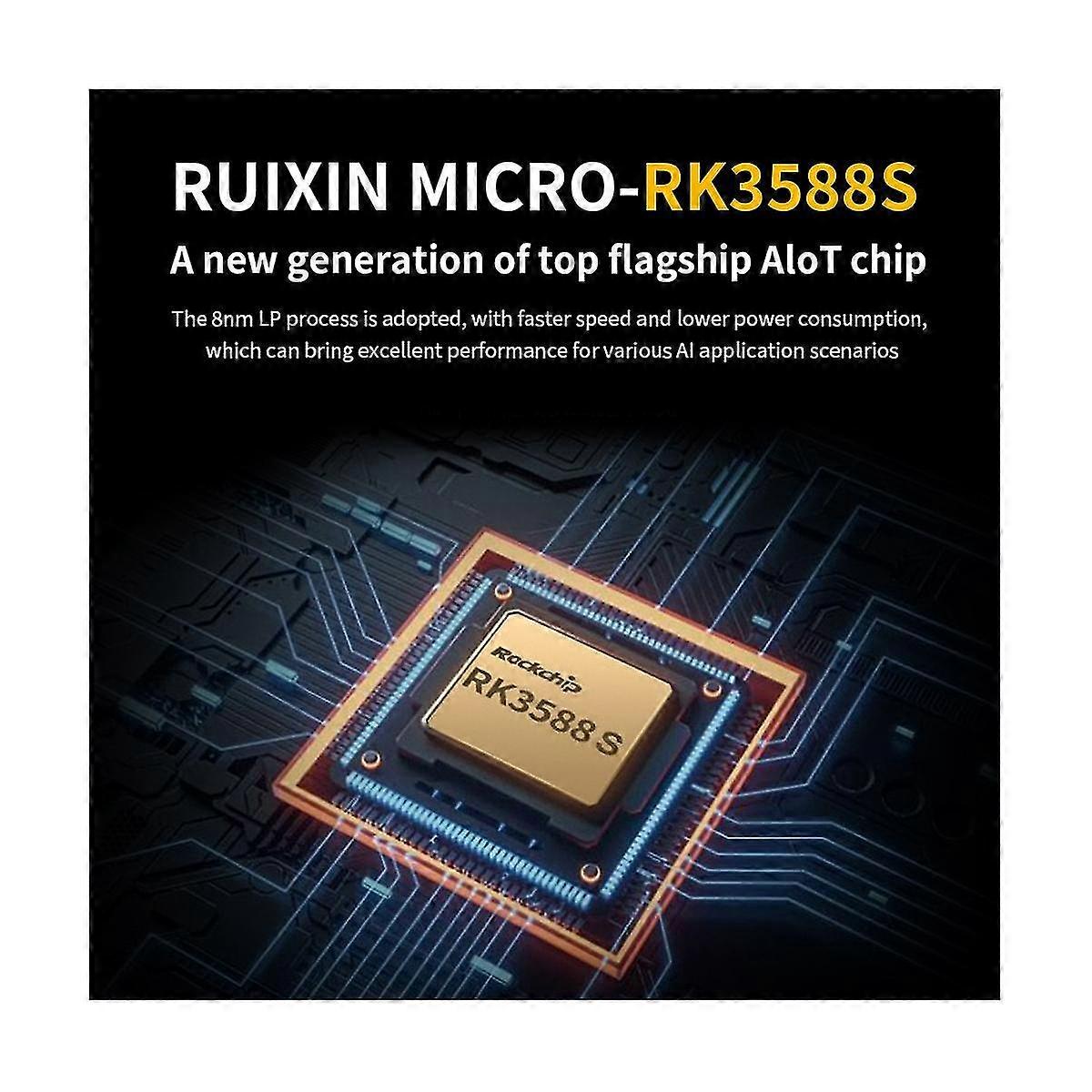

Product name: for 5 Development Board Master chip: Rockchip RK3588S (8nmLP process) CPU: 8-core 64 bit processor, 4-core -A76 and 4-core -A55 typical size core architecture, core frequency 24GHz, small core frequency 1.8GHz GPU: integrated ARM Mali-G610, built-in 3D GPU, compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan1.2 NPU: Built in Al accelerator NPU with up to 6 Tops computing power, supporting INT4/INT8/INT16 hybrid computing PMU:RK806-1 RAM: 8GB LPDDR4/4x Storage: QSPI Nor FLASH 16MB, MicroSD (TF) Card, Pcle M.2 M-KEY NVME SSD USB:USB3.0*1,USB2.0*2,Type-c(USB3.0)*1 Video output: -compatible with 2.1, maximum support 8K@60Hz ; DP1.4 (Display Port), DP1.4 is multiplexed with USB3.0 ports, and shares ports with Type-C; 2 * MIPI D-PHY TX 4Lane, maximum configurable 4K@60Hz Camera: MIPI 4lane; 2* MIPI D-PHY RX 4lane Audio: CODEC: ES8388, 3.5mm headphone jack audio input/output; Input: on-board MIC; -compatible with 2.1 EARC Pcle M.2 M-KEY Socket: The following function modules are supported but not limited: SSD SSD module supporting Pcle M.2 M - KEY NVME WI-FI6+BT5.0 customization module supporting Pcle M.2 M-KEY Ethernet: 10/100/1000Mbps Ethernet (YT8531B) Expansion port: 26Pin double row pin, supporting the following functions: 3 * UART; 6*PWM; 2*I2C; 1* SPI; 2*CAN; 17*GPIO; These functions are reusable and cannot be supported at the same time Keys: 1 * MaskROM key, 1 * On/Off key, 1 * RECOVERY key Power supply: support Type-C power supply (5V4A) LED: power indicator: red; Status indicator: green Debugging: 3Pin debugging serial port (UART) Product size: 62 x 100mm Material: PCB+Metal colour: Blue Package Contents: 1 x for 5 Development board 1 x acrylic case 1 x fan Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
