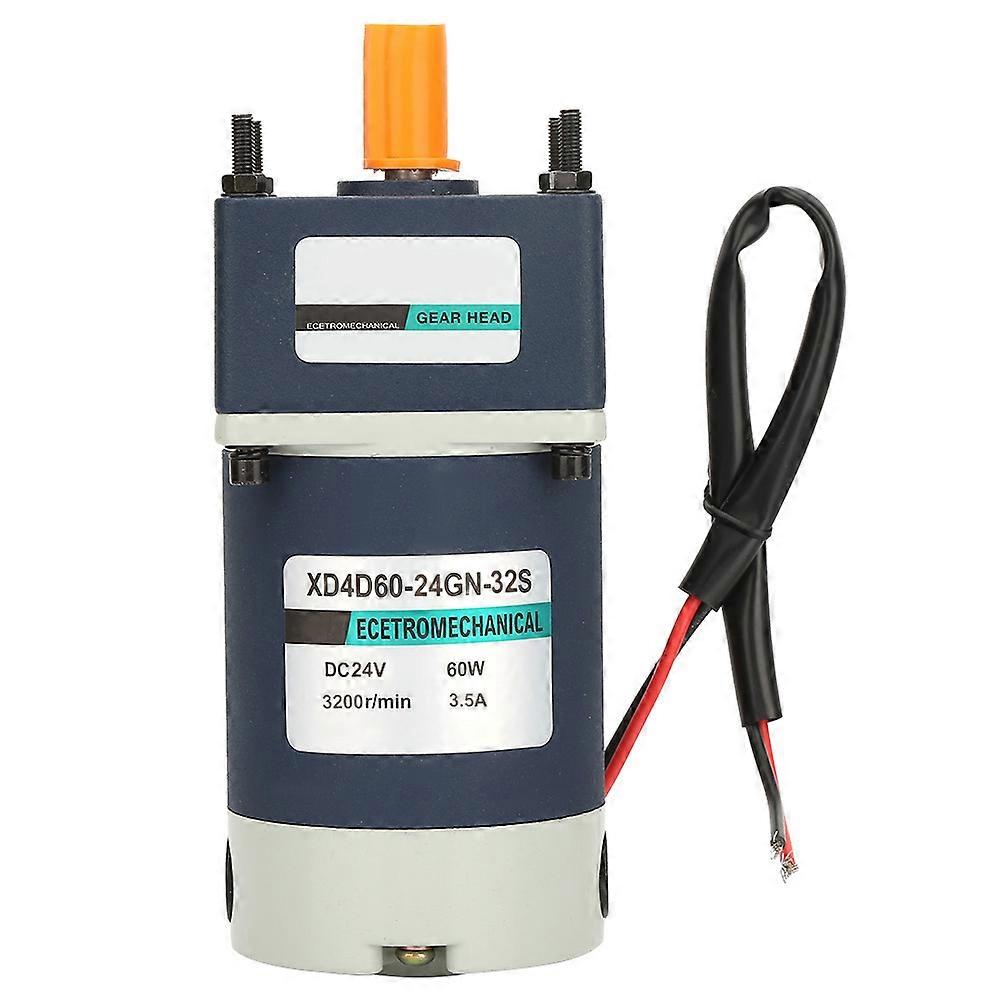

1、The product consists of two parts: DC motor and gear reducer. The rated voltage of the motor is 24V, the rated power is 60W, the torsion is 1.3kg.Cm, the rated speed is 3200 RPM, the gearbox has different reduction ratios, and the appropriate model can b 2、The motor output shaft is a helical gear with a large contact area, good flexibility and better stability. 3、The output shaft of the gearbox is the shaft with the key slot. 4、Metal gear, good rigidity and large torsion 5、The surface of the paint layer is frosted, not easy to scratch and paint off, it is protective Features: 1. The product consists of two parts: DC motor and gear reducer. The rated voltage of the motor is 24V, the rated power is 60W, the torsion is 1.3kg.Cm, the rated speed is 3200 RPM, the gearbox has different reduction ratios, and the appropriate model can be selected according to the required output speed. 2. The motor output shaft is a helical gear with a large contact area, good flexibility and better stability. 3. The output shaft of the gearbox is the shaft with the key slot. 4. Metal gear, good rigidity and large torsion 5. The surface of the paint layer is frosted, not easy to scratch and paint off, it is protective Specification: Condition: 100% Brand New Voltage: 24V Power: 60W No-Load Speed of the Motor Without Gearbox: 3200 RPM No-Load Current of Motor Without Gearbox: 1.35A Motor Load Speed Without Gearbox: 3000 RPM Motor Load Current Without Gearbox: 3.5A Motor Torsion Without Gearbox: 1.3 kg.Cm Insulation Class: Class B Motor Size: Approx. 19.3 * 8 * 8cm / 7.6 * 3.1 * 3.1in Shaft Size: Diameter: Approx. 10mm / 0.4in Length: Approx. 29mm / 1.1in Optional Style: Reduction Ratio 3, 1067RPM, Reduction Ratio 5, 640RPM, Reduction Ratio 7.5, 430RPM, Reduction Ratio 10, 320RPM, Reduction Ratio 12.5, 260RPM, Reduction Ratio 15, 210RPM, Reduction Ratio 18, 180RPM, Reduction Ratio 20, 160RPM, Reduction Ratio 25, 130RPM, Reduction Ratio 30, 110RPM, Reduction Ratio 36, 90RPM, Reduction Ratio 50, 65RPM, Reduction Ratio 60, 50RPM, Reduction Ratio 75, 40RPM, Reduction Ratio 100, 30RPM, Reduction Ratio 150, 20RPM, Reduction Ratio 180, 17RPM, Reduction Ratio 200, 16RPM Package List: 1 * Permanent Magnet DC Gear Motor
