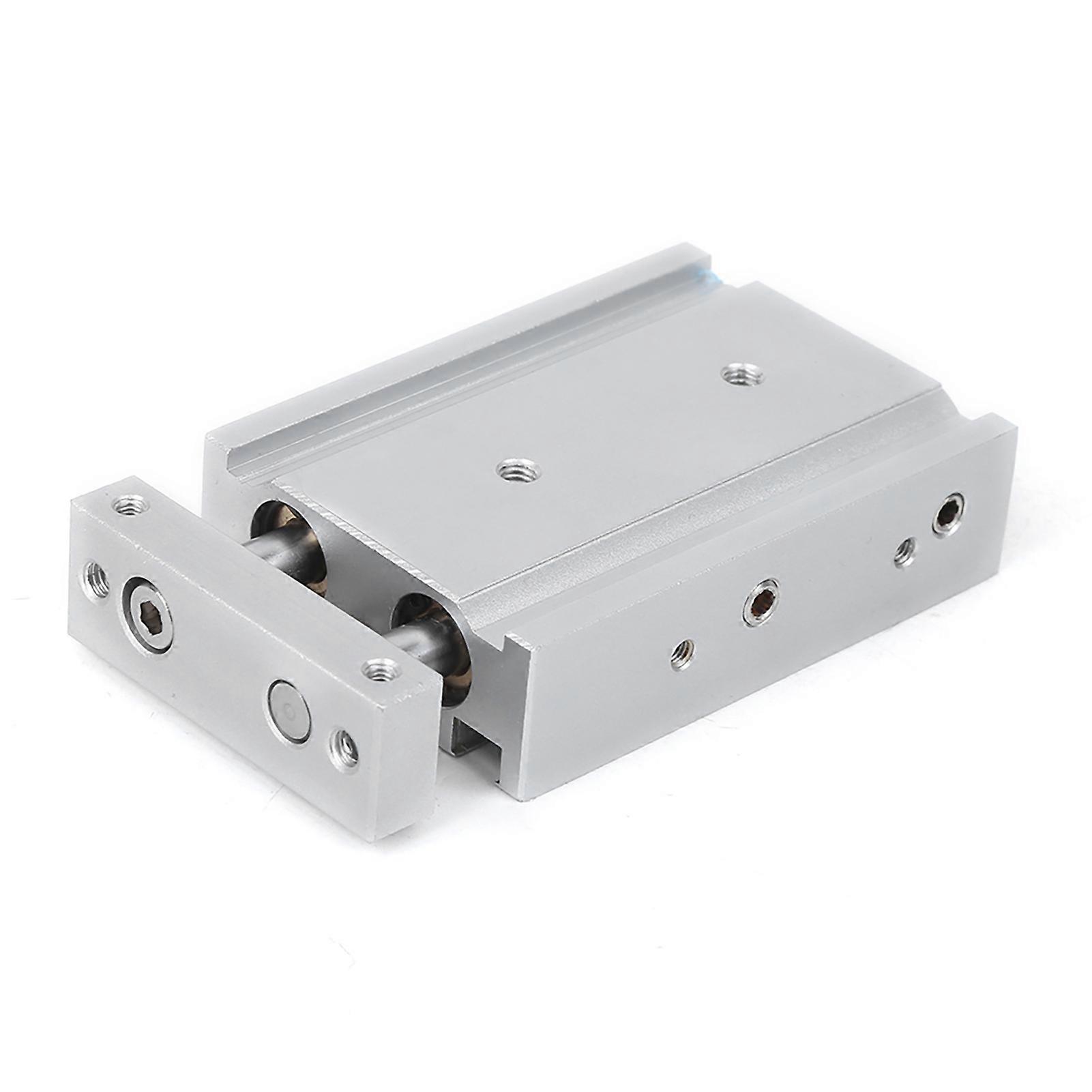

DoubleRod Air Cylinder Guide Rod Plate Double Guided Pneumatic Slide Bearing Cushioned(CXSM1030 )

٩٫٩٥٠ د.ب.‏
+ ٢٫٩٩٠ د.ب.‏ الشحن

DoubleRod Air Cylinder Guide Rod Plate Double Guided Pneumatic Slide Bearing Cushioned(CXSM1030 )

  • العلامة التجارية: Unbranded

DoubleRod Air Cylinder Guide Rod Plate Double Guided Pneumatic Slide Bearing Cushioned(CXSM1030 )

  • العلامة التجارية: Unbranded
السعر: ٩٫٩٥٠ د.ب.‏
البائع:
٩٫٩٥٠ د.ب.‏
+ ٢٫٩٩٠ د.ب.‏ الشحن

في المخزون

نقبل وسائل الدفع الآتية

الوصف

Item Type: Double?Rod Air Cylinder <br>Cylinder Diameter (mm): 10 <br>Stroke (mm): 10, 20, 30, 40, 50, 60, 100 <br>Fluid: Air <br>Action Mode: Double acting <br>Maximum Working Pressure MPa: 1.0 <br>Lowest Working Pressure MPa: 0.1 <br>Environment And Fluid Temperature: -10~+60℃ (not frozen) <br>Buffer: Rubber buffer at both ends <br>Use Piston Speed mm/s: 30-800 <br>Structure: Double cylinder (2 times the output force) <br>Lubrication: Not required <br>Range Of Stroke Adjustment: Retract stroke 0~ -5mm <br>Bearing: Plain bearing <br>Piston Rod Non-rotating Accuracy: ±0.1° <br>Interface Diameter: M5x0.8<br>1、The product has thin double cylinder structure, and it has high non?rotating and accuracy. <br>2、Because the product has two cylinders, so it has 2 times the output force, strong resistance to side load. <br>3、The double?rod cylinder has a variety of itineraries to choose from. It is very convenient to use. <br>4、There are rubbers buffer at both ends,and the use piston speed is 30-800 mm/s. <br>5、The product's maximum working pressure is 1.0 MPa, and the lowest working pressure 0.1 MPa.1 x&nbsp;Air Cylinder
  • هوية Fruugo: 379358150-818872945
